Product Description

0.9Deg Nema 17 Stepper Motor

PRODUCT DETAILS

Model: 42BYGH Nema 17 2Phase Hybrid Stepper Motor 42x42mm for 3d Printer XYZ -42HM(0.9 degree)

Product Name: 0.9degree 42mm Nema 17 Stepper Motor

Model Name: 42BYGH Stepping motor

Size: 42x42mm Step Motor

Current / Phase: 0.3A ~ 1.68A

Holding Torque: 1.58kg.cm - 5.5kg.cm

Leads No.: 4 or 6leads

Motor Length: 34mm / 40mm / 48mm / 60mm

Product Type: 2 Phase Biplor Stepping Motor

Type: 3d Printer Motor / Hybrid Stepper Motor

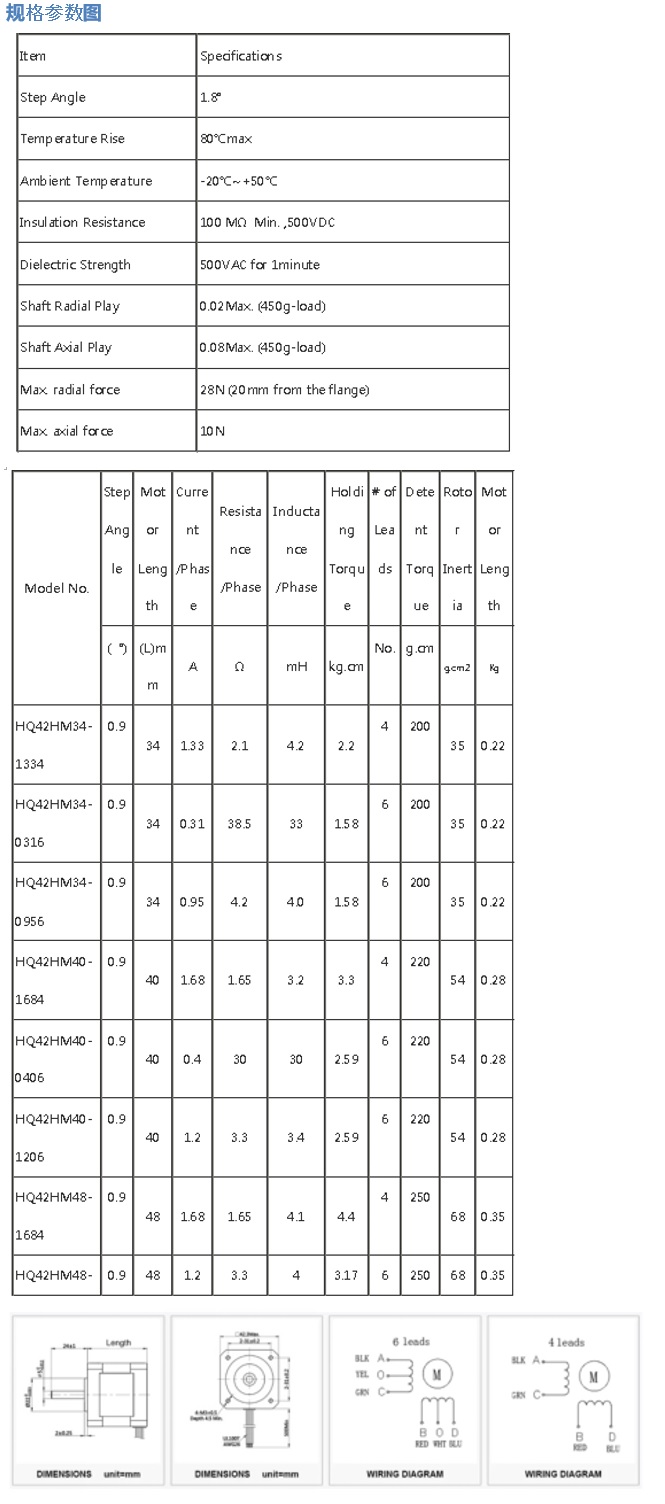

General Specification:

Electrical Specification:

Note: Above only for representative products, products of special request can be made according to the customer request.

Product Parameters:

Feature summary：Low Inertia、Low Noise、High Torque

Place of Origin：china

Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...

Applicatin Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery,  Lighting, ect.

Packing：The sample is packed in carton,the batch with plastic pallet

Delivery time：Standard product: 7-10days

Customized product: 25-30days

Product Dimensions: (Unit=mm)

Customized Design:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
