Product Description

1.8Deg Nema 8 Stepper Motor

PRODUCT DETAILS

Model: 0.79in 2 Phase Hybrid Biplor Nema 8 Stepper Motor 20*20mm-20HS(1.8 degree)

Motion Control Products range of 20mm (NEMA8) Hybrid stepper motors are ideal for applications where size and cost is an important factor. NEMA 8 stepepr motors can be supplied with a variety of housings, single or double shaft options, winding configurations and IP rating options,HQMOTOR can also provide other stepper motor or bldc motor customized, such as brake, encoder, gearbox or integrated step motor...

NEMA 8 frame (20mm square) is the smallest size of hybrid stepping motor. We supply NEMA 8 stepper motor with 1.8 degree step angle and a weight of only 50g. We also customize the winding to perfectly match your voltage and current. If you want to buy NEMA 8 stepper motor,Our company is definitely your best choice.Our Step motor technology utilizes a simple design to create an effective solution for many applications requiring reasonable accuracy and torque. Get a stepper motor that meets your requirements precisely.

Product Name: Nema 8 Stepper Motor

Size: 20x20mm / 0.79inch Step Motor

Current / Phase: 0.6A or 0.8A

Holding Torque: 180g.cm - 400g.cm

Leads No.: 4leads

Motor Length: 30mm / 33mm / 38mm / 42mm

Product Type: 2 Phase Hybrid Stepping Motor

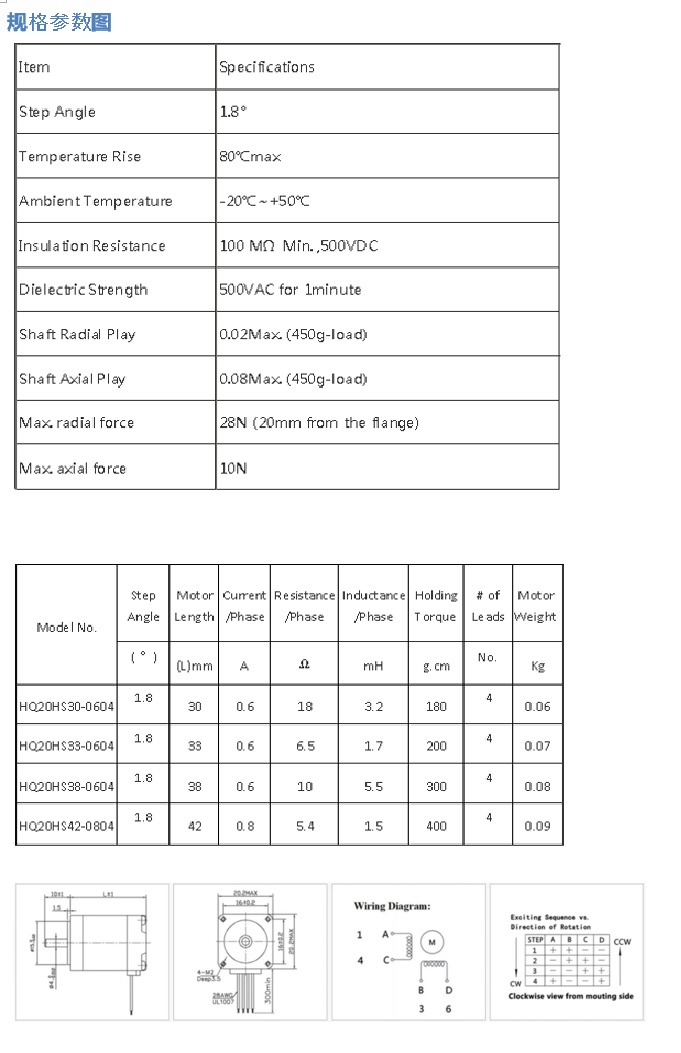

General Specification:

Electrical Specification:

Note: Above only for representative products, products of special request can be made according to the customer request.

Feature summary：

Feature summary：Low Inertia, Quick Response; High Torque, High Efficiency; Low Vibration, Low Noise.

Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...

Applicatin Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery,  Lighting, ect.

Packing：The sample is packed in carton,the batch with plastic pallet

Delivery time：Standard product: 7-10days

Customized product: 25-30days

Product Dimensions: (Unit=mm)

Customized Design:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
