Product Description

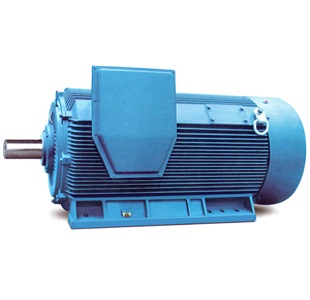

Y2 series three-phase high voltage asynchronous squirrel-cage AC motors can be used to drive various types of general machinery, such as compressor, water pump, crusher, cutting machine, transport machinery and other mechanical equipment for mining, machinery, petroleum chemical, power generation and other industrial enterprises.

Outline mounting dimensions of the motors comply with IEC 72 Standard.

Performances and technical requirements of the motors can be checked in accordance with IEC 34 Standard of the international Electro technical Commission

Frame sizes: 315-560

Rated output: 185-1600 kW

Insulation class: F or H

Voltage:3000V,3300V,6000V,6600V,10000V or other voltage may be derived on request .

Duty cycle: S1

Degree of protection: IP54/IP55

Cooling type : IC411,IC416
