Product Description

Model: 36mm 38BL 12V 24V 36V Round Brushless Dc Motor with Planetary Gearbox 38x36mm

A planetary gearbox is a gearbox with the input shaft and the output shaft aligned. A planetary gearbox is used to transfer the largest torque in the most compact form (known as torque density).

A planetary gear is a type of gear system comprised of spur gears. In planetary gearing (also known as epicyclic gearing), a center gear, called a sun gear, serves as the input and driver of the set. Three or more “driven” gears (referred to as planets) rotate around the sun gear.

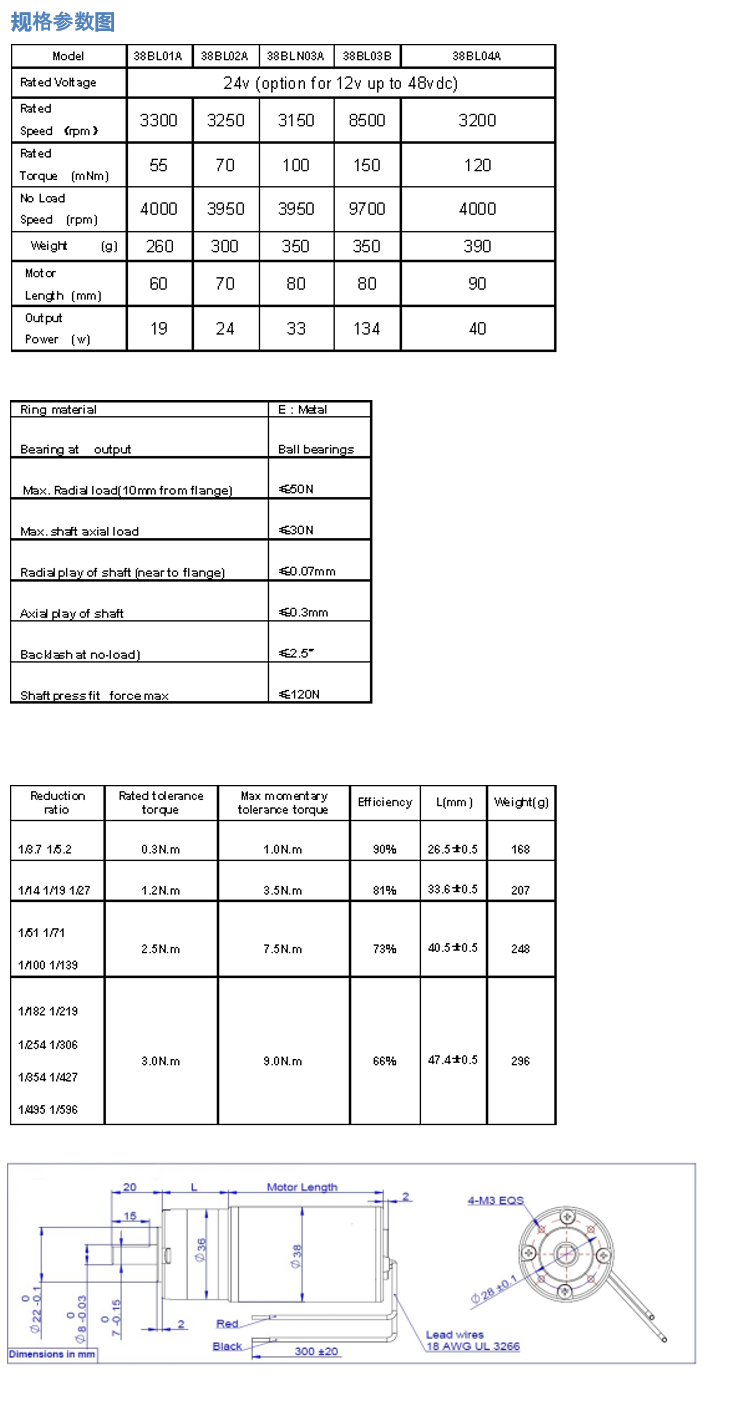

General Specification of 38BL BLDC Motors:

36MM Planetary Gearbox Electrical Specification:

36BL Round Brushless DC Geared Motor Dimensions: (Unit=mm)

Product Parameters:

Product Type: 38BL Round Geared BLDC Motor with Planetary Gearbox

Size：38x36mm

Place of Origin：china

Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...

Feature summary:  Low Inertia,Quick Feedback; High Torque,High Efficiency; Small Vibration,Low Noise

Packing：The sample is packed in carton,the batch with plastic pallet

Delivery time：Standard product: 7-10days

Customized product: 25-30days

APPLICATION：Medical equipment: medical pumps, stirring instruments, peristaltic pumps, biopharmaceutical equipment. Industrial equipment: winding machines, printing machines, robots, grinding, cutting, drilling, automatic conveying systems, automatic positioning systems, level control systems, electric actuators, electric valves, vending machines.

Customized Design:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
