Product Description

86MM Square

BLDC Motor

PRODUCT DETAILS

Model: NEMA 34 86mm  HQ86BLS Square BLDC

Motor 86x86mm 48v

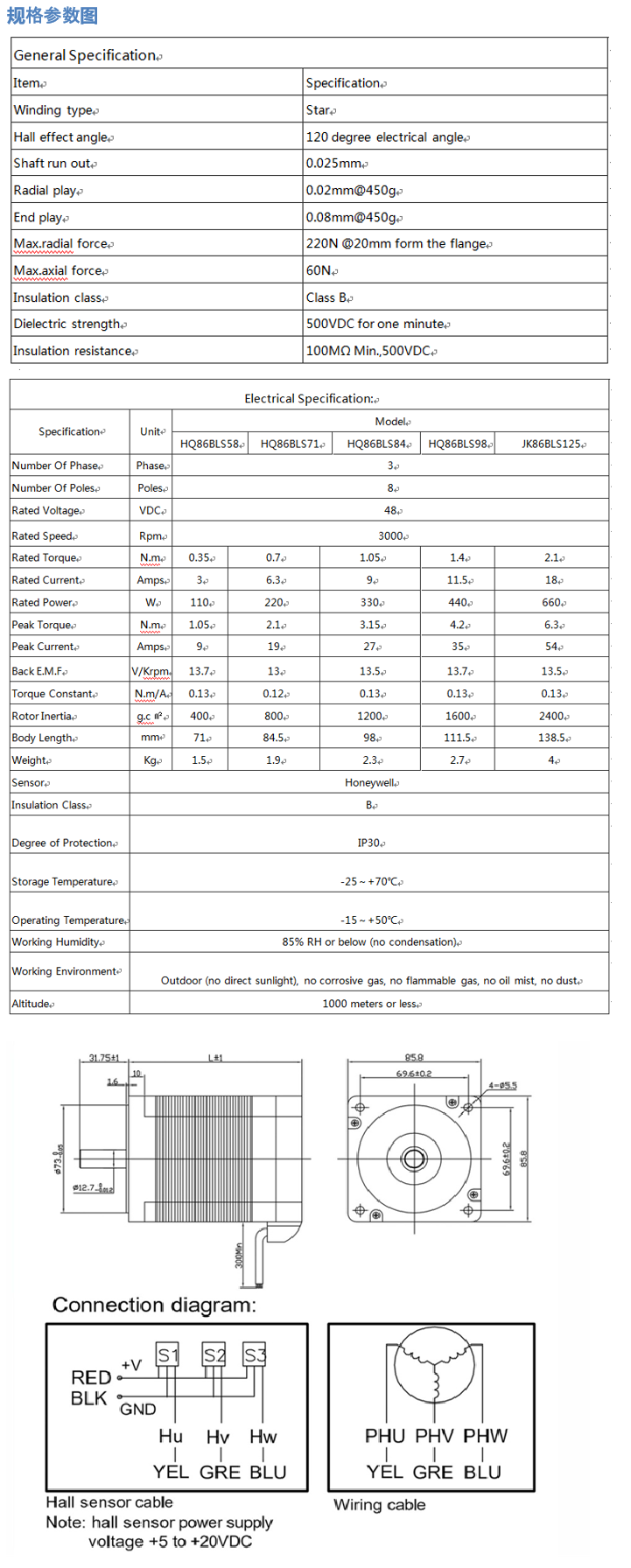

General Specification:

Product Parameters:

Product Type:

HQ86BLS Square Brushless DC Motor

Size：86x86mm

Place of Origin：china

APPLICATION：Medical equipment: medical pumps, stirring instruments, peristaltic

pumps, biopharmaceutical equipment. Industrial equipment: winding

machines, printing machines, robots, grinding, cutting, drilling, automatic conveying

systems, automatic positioning systems, level control systems, electric

actuators, electric valves, vending machines.

Electrical Specification:

Note: Above only for representative products, products of special

request can be made according to the customer request.

Product Dimensions: (Unit=mm)

Customized Design:

If this motor do

not match with your request. Please feel free to contact with us,We can make

customized shaft / winding / mounting flange / cable / connector / Encoder /

Brake / Gearbox and others. We will works side-by-side with you and your team

to design a motor that will fit the precise needs of your application. All

Engineering and Support is done in-house.
